Biniguy S008 Silo|Boorowa S008 Silo
The S008 silo is probably the smallest concrete silo that can be modelled and takes up a reasonably small model (HO) footprint (345 mm x 185mm). There were 16 of these silos built between 1928 - 1934. They have a storage capacity of 800 tonnes (30,000 bushels). There are 4 main bins of 14' diameter, and there are also 8 smaller bins inside the silo, which allow for the storage of various grains. These silos have a 64' bin height, with a 6" wall thickness.
SILO LOCATION DATE CONSTRUCTED DATE EXTENDED
ALLENA 1928 -----
BINIGUY 1934 -----
BOOROWA 1929 -----
BREEZA 1934 1959 - 3550 TONNE

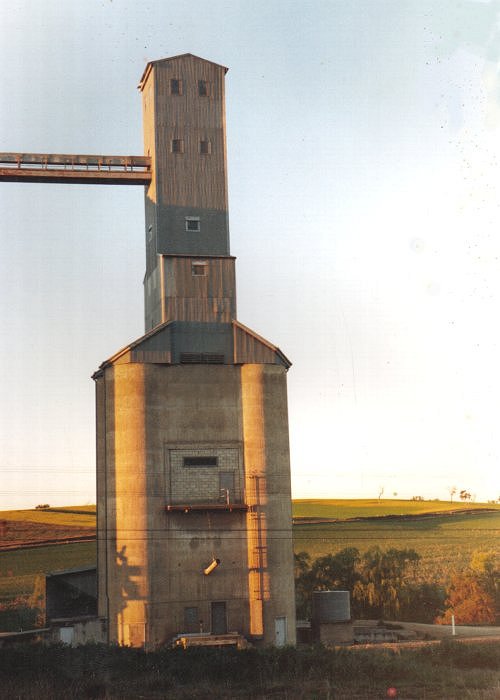

CUNNINGAR 1931 1967 - 7250 TONNE
CURBAN 1930 1960 - 5150 TONNE
DERRIWONG 1933 -----
ERIGOLA 1930 1962 - 4900 TONNE
GIDGINBUNG 1930 -----
LADYSMITH 1931 -----
MUNYALBA 1928 -----
NARRABRI 1934 -----
NELUNGALOO 1934 -----
PLEASANT HILL 1932 -----
TAMWORTH WEST 1934 -----

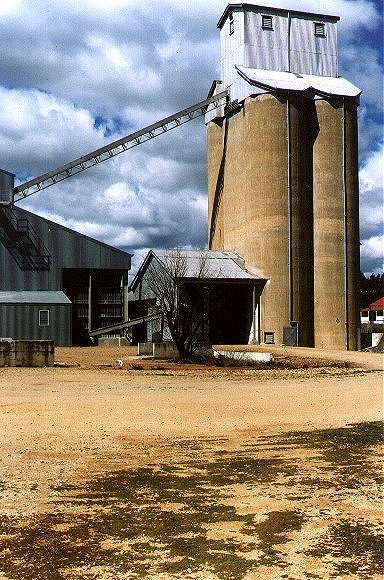

WOODSTOCK 1930 -----
